Wall Caps

Catalog

Click here to view drawings of our Wall Caps from our online catalog.

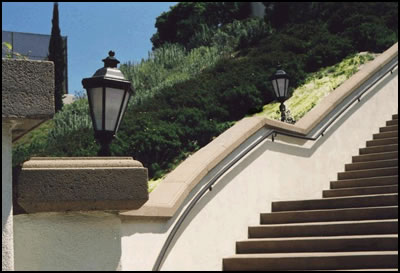

Wall caps are available in a wide variety of styles and widths and are generally produced in 24 inch lengths. Sizes are usually measured at the footprint of the cap (the flat bottom surface of the cap which sets upon the top surface of the wall). The footprint of the wall cap should be slightly wider than the wall width in order to accommodate any slight irregularities which might exist in the width of the wall. This is especially applicable where stucco covered block walls are laid on a radius.

Many of our wall caps are available in “radius sizes”, however others will require a custom mold in order to produce your required curve. Arc radii are measured at the bottom of the inside edge of the foot print. Please consult our sales staff in order to determine if an existing radius is available in the cap style which you have selected.

Download

Wall Caps – Complete Wall Caps Section in PDF format.

Wall Caps – Complete Wall Caps Section in DWG format.

Full Catalog – Complete Product Line in PDF format.
